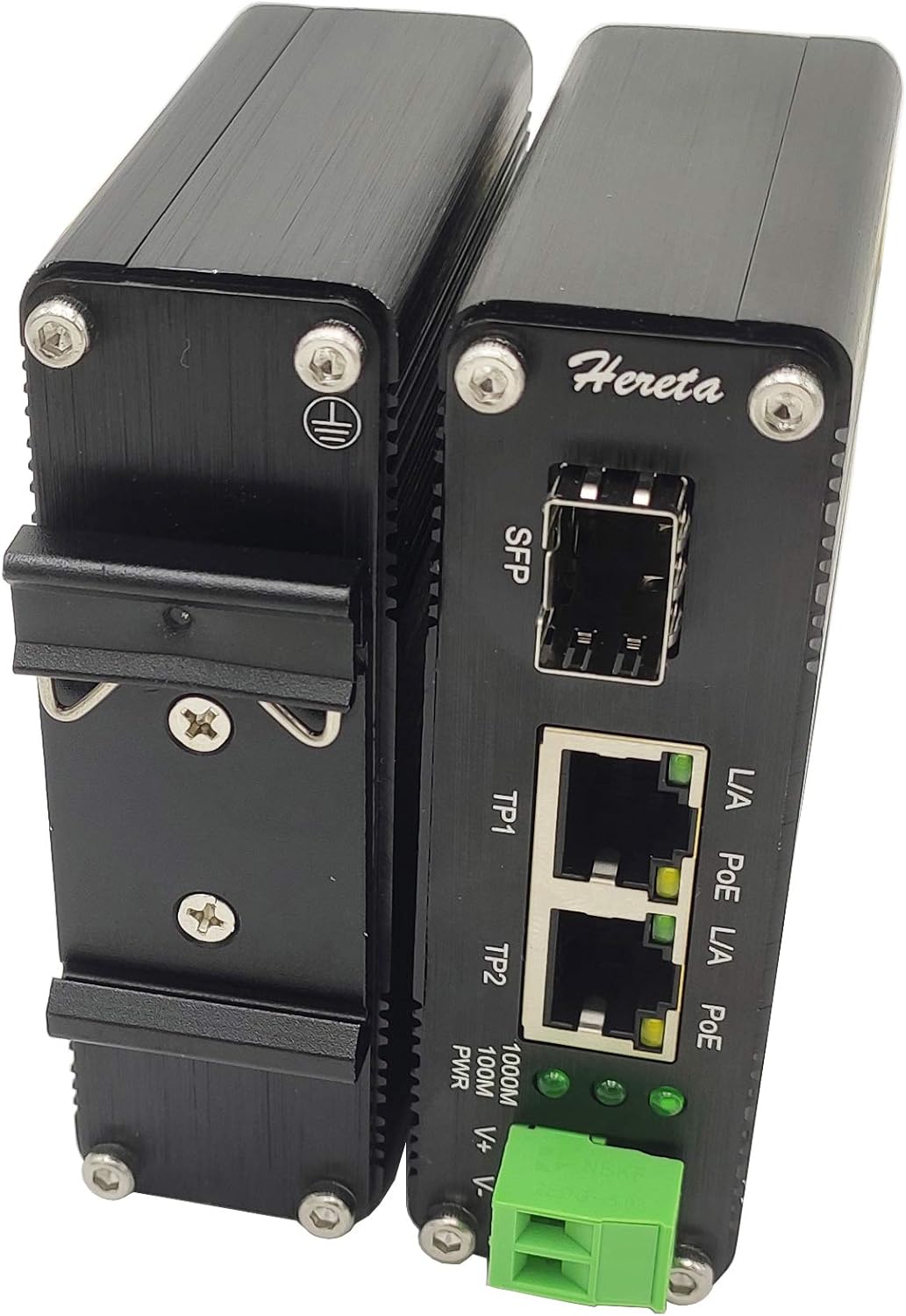

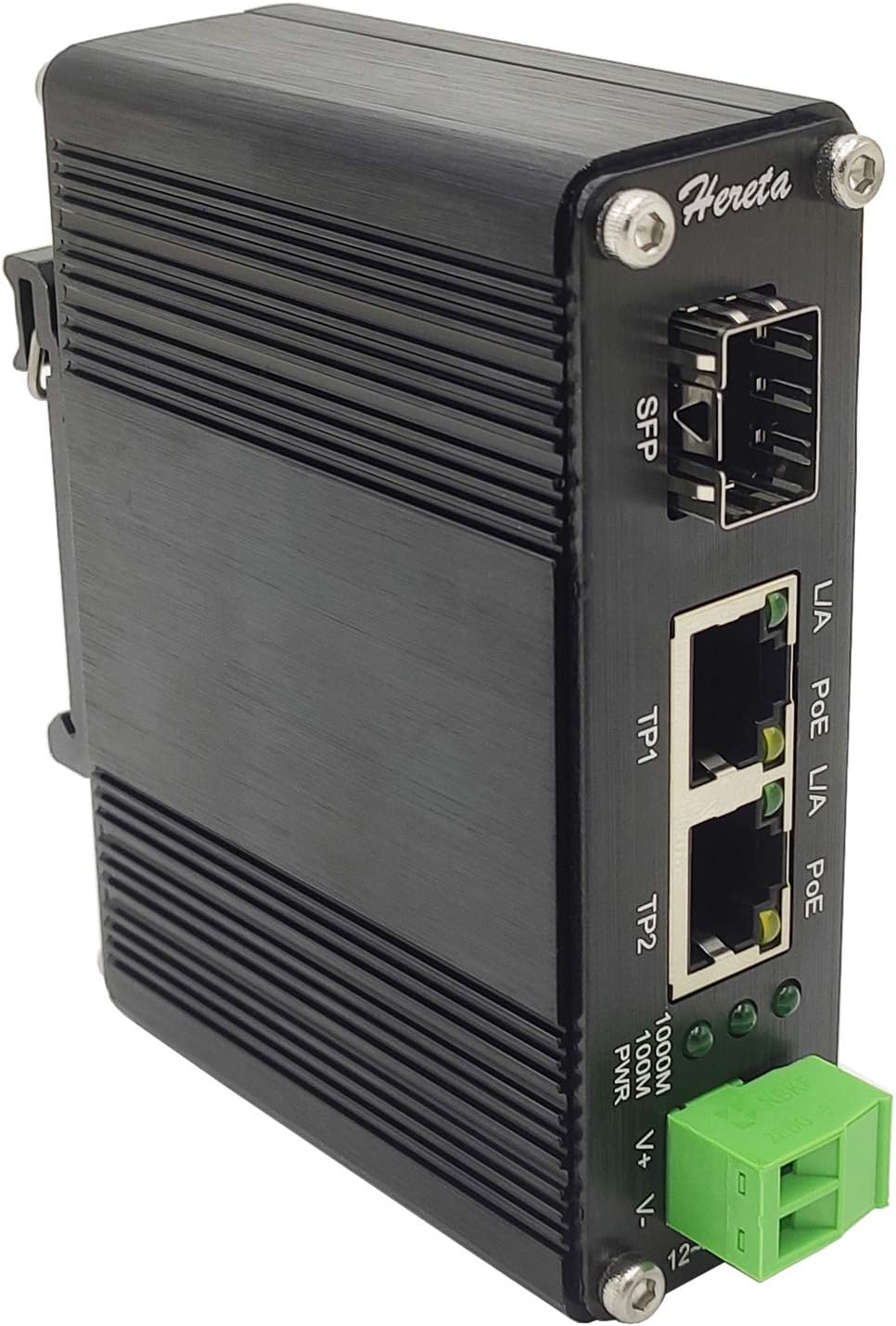

Industrial Ethernet Media Converter POE+ 30W Aluminum Case 2 RJ45 Port 1 SFP Port 12~48V DC Input G436
Industrial Ethernet Media Converter POE+ 30W Aluminum Case 2 RJ45 Port 1 SFP Port 12~48V DC Input G436
【Compatibility】 Media Converter complies with IEEE802.3af PoE (15.4W) and IEEE802.3at PoE+ (30W)
【Ports】 1 RJ45 port： 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function 1 SFP Port： 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)；SFP optical module support SM; MM; BiDi; DUAL

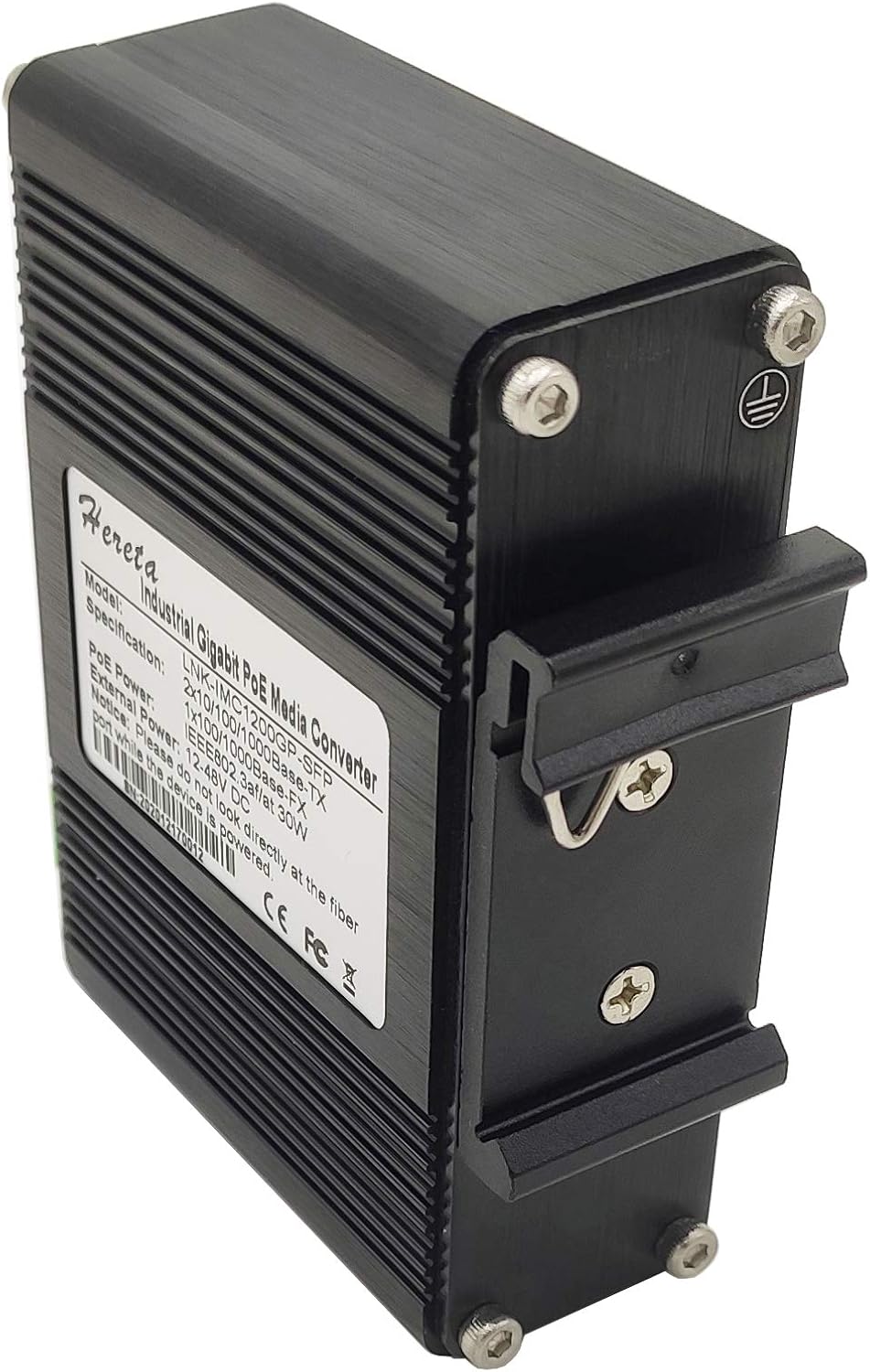

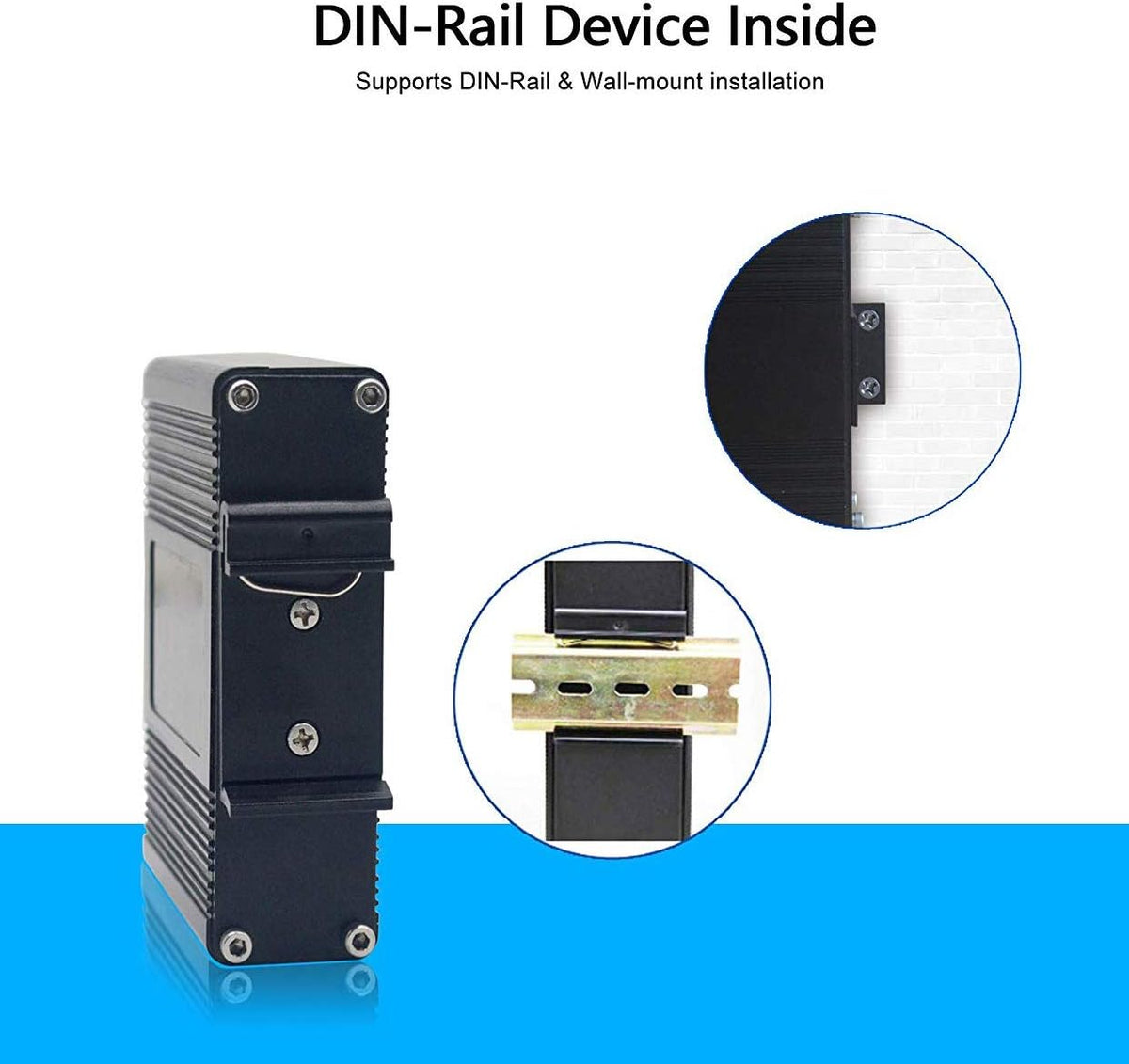

【Easy Installation】 Media Converter Supports DIN-Rail & Wall-mount installation

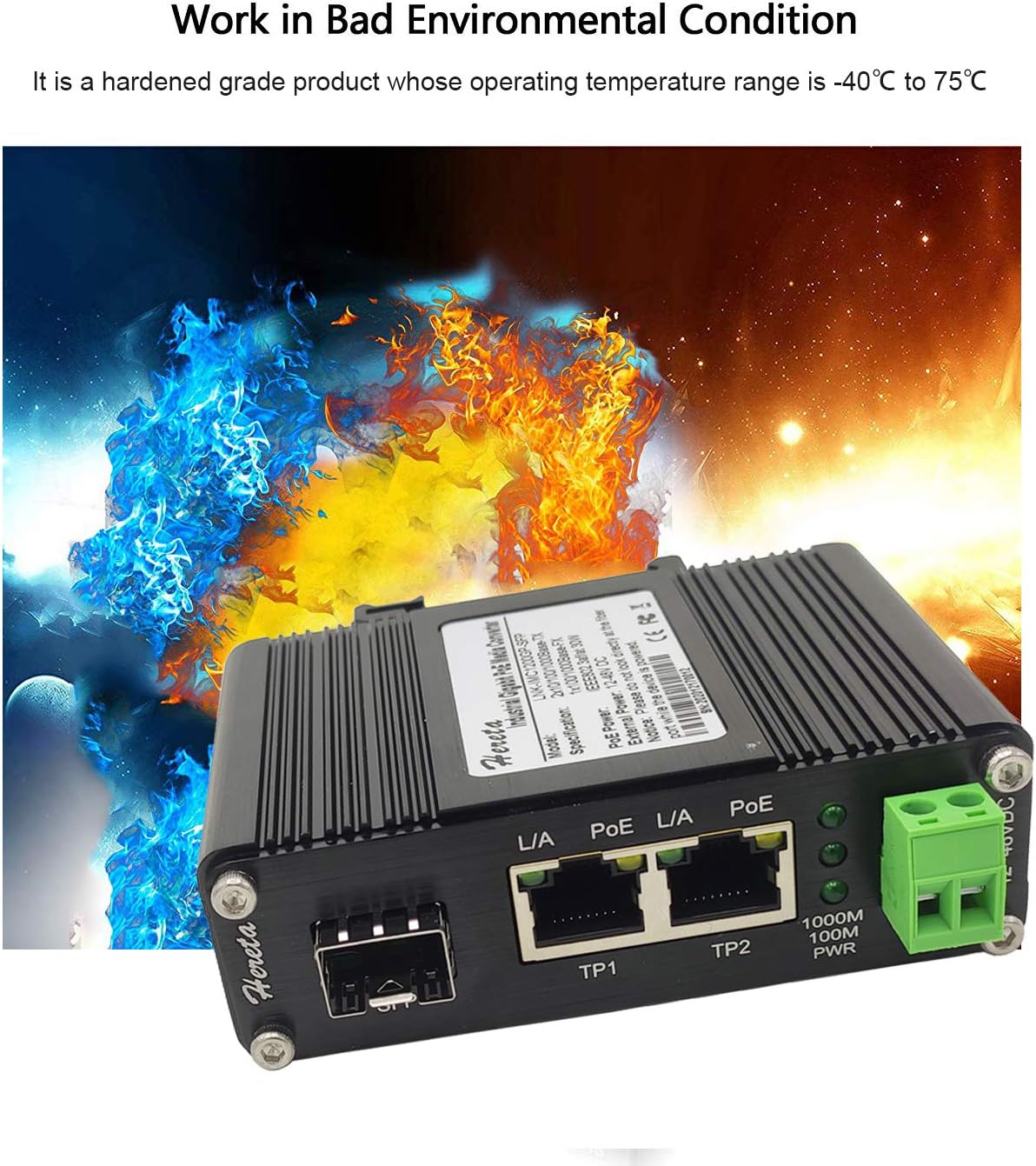

【Operating Conditions 】Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature; Relative Humidity: 5% to 95% non-condensing
【Mini Size & light weight】Only 3.74' x 2.76' x 1.81' and 0.55 lb design to facilitates installation in the narrow spaces
Features:

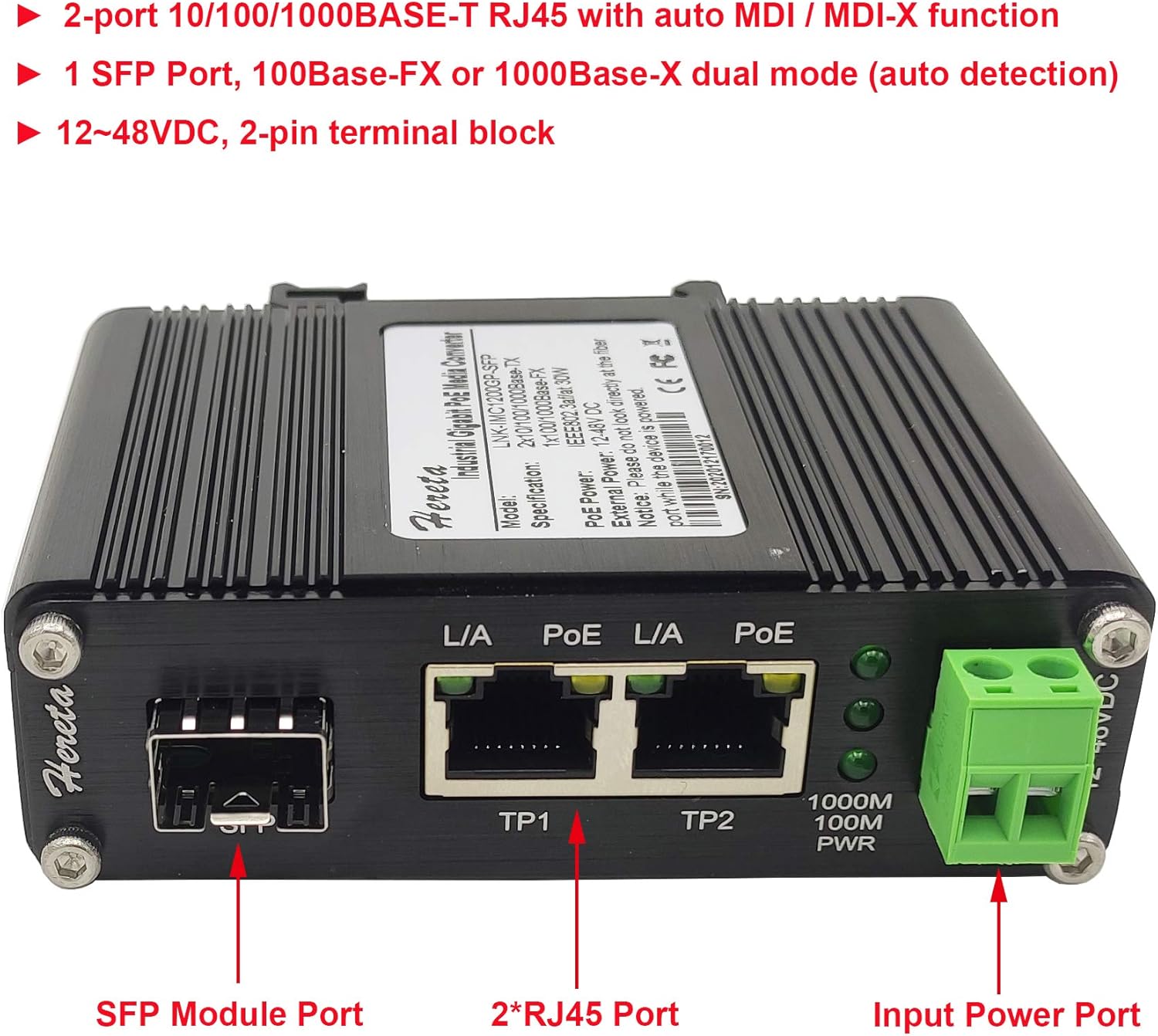

►2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
►1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
►Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
►Supports Link Fault Pass Through
►Supports Full/Half-duplex, Auto-negotiation
►9K Bytes Jumbo Frame
►12~48VDC Terminal Block Power Input
►Supports DIN-Rail & Wall-mount installation
►Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature
Technical Indexes:
Ethernet
Standards:
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type: Store-and-Forward
Electrical and Mechanical:
Input Power: 12~48VDC, 2-pin terminal block
Output Power: 48VDC
Power Consumption: 65W Max.
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
Package:
LNK-IMC1200GP-SFP Media Converter x 1
Quick Start Guide x 1
L-shaped wall mount bracket x 1
