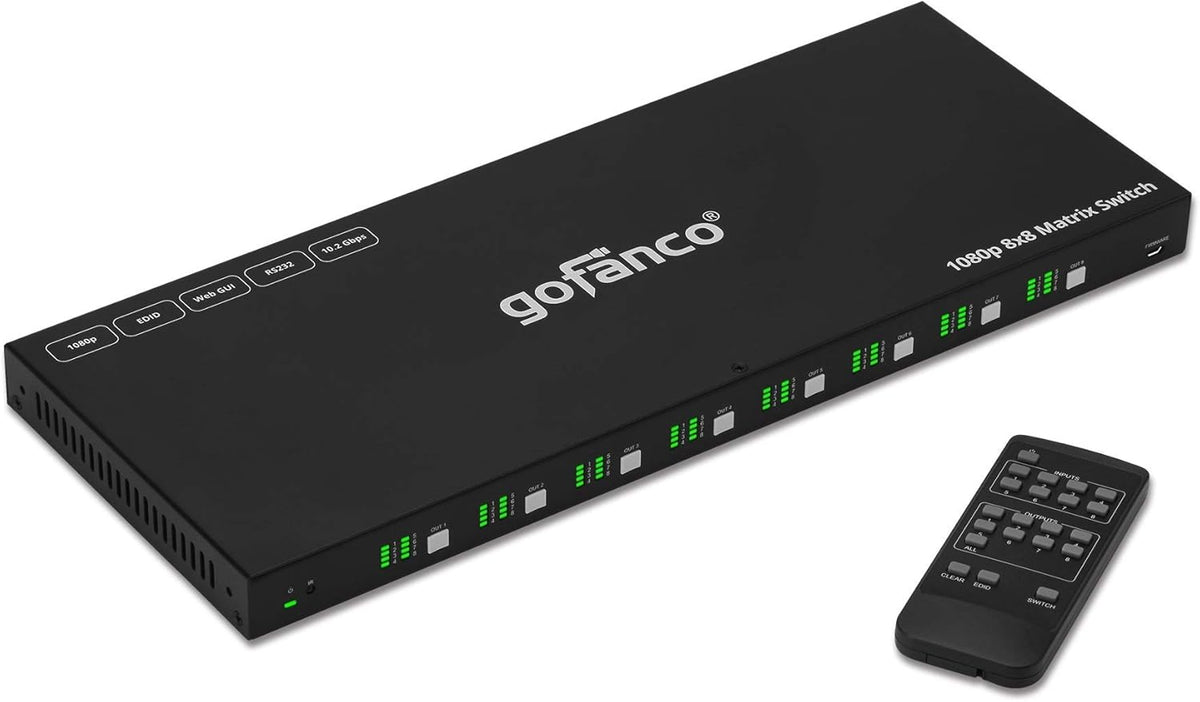

8x8 HDMI Matrix Switch C559618
Sale price
$30.99
Regular price $106.23
Skip to product information

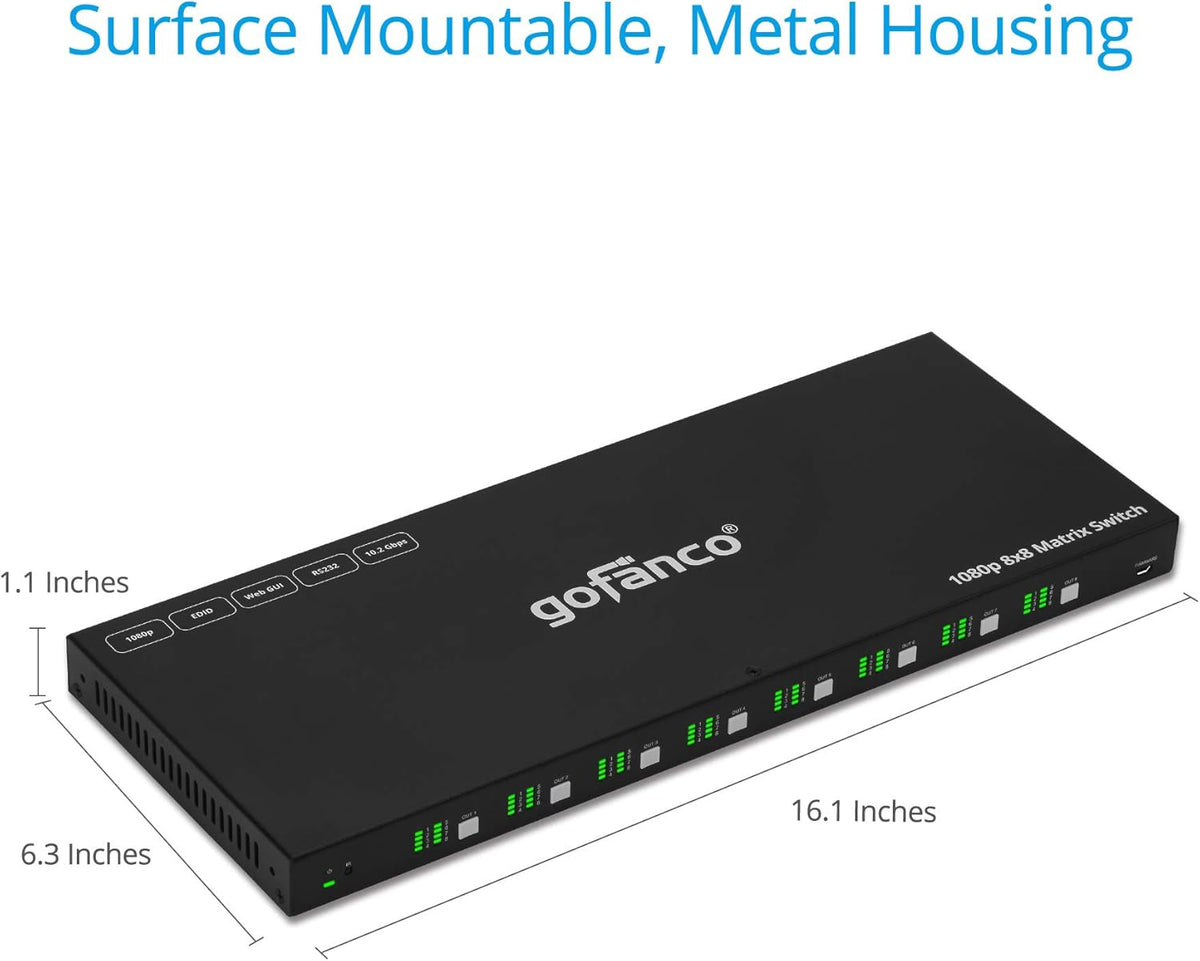

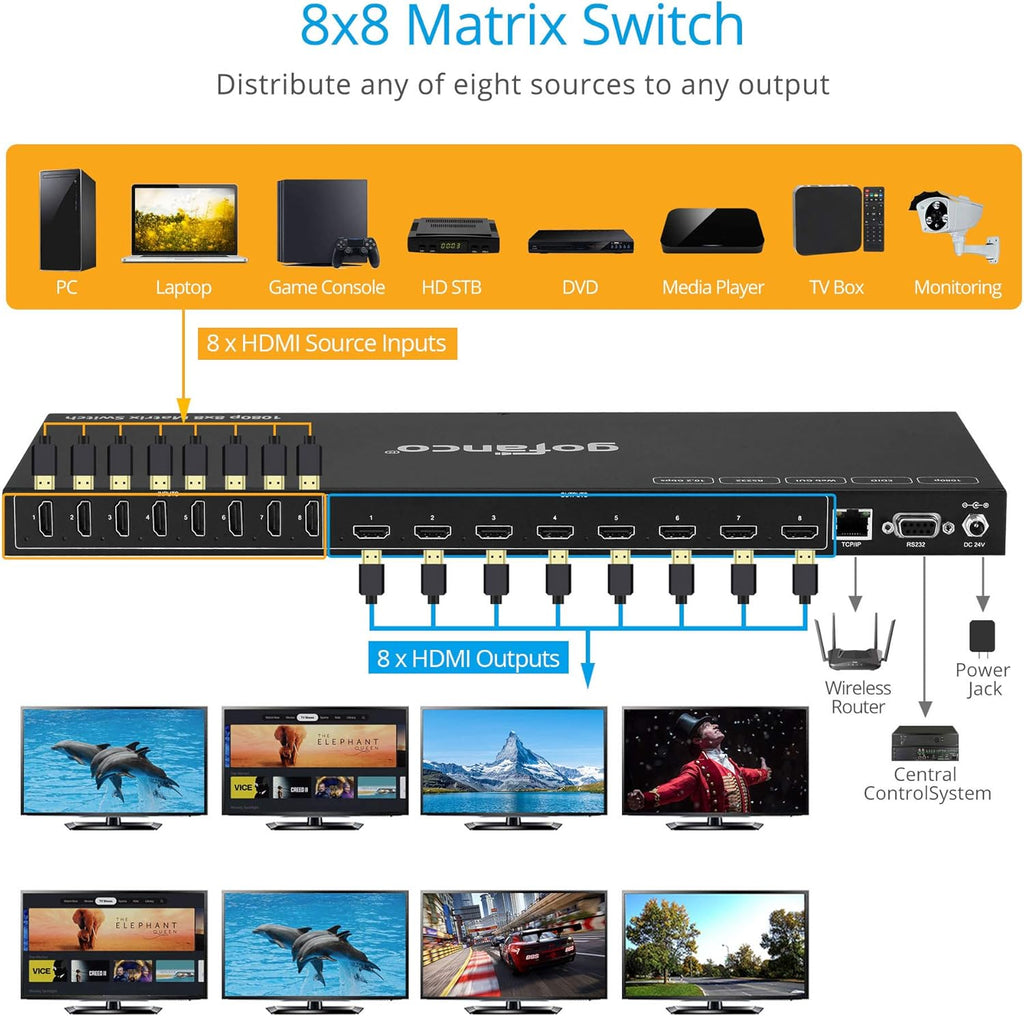

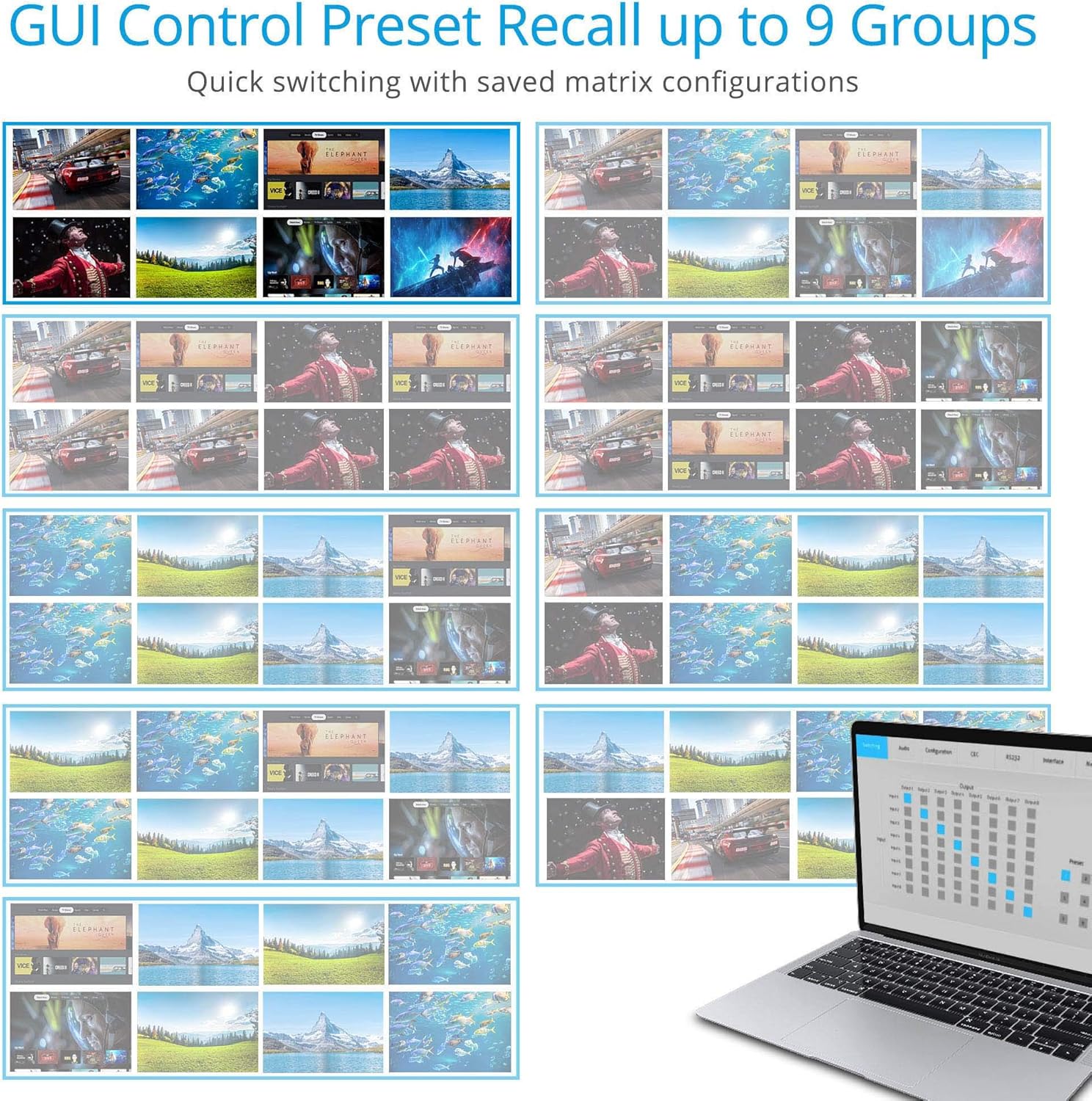

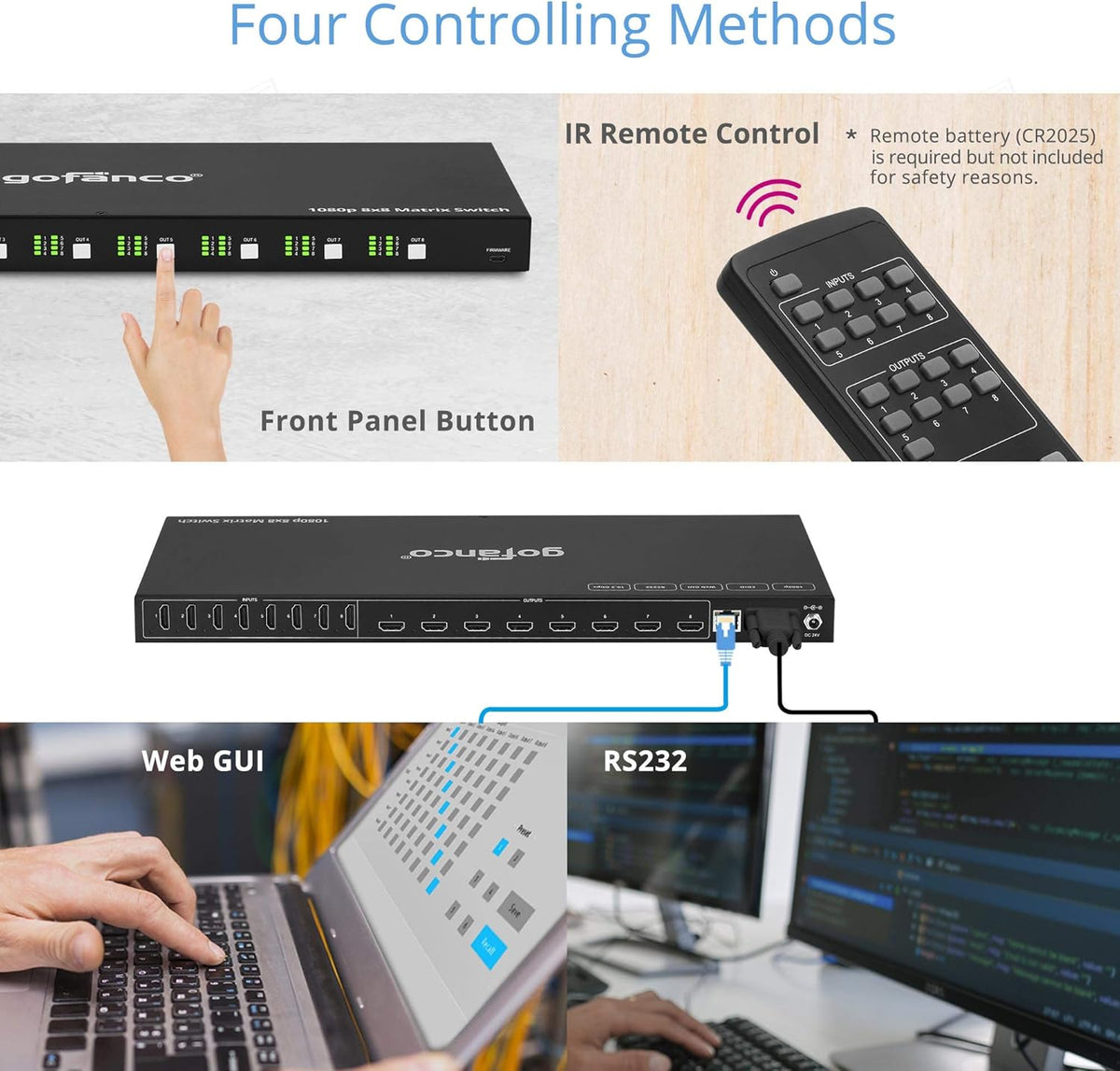

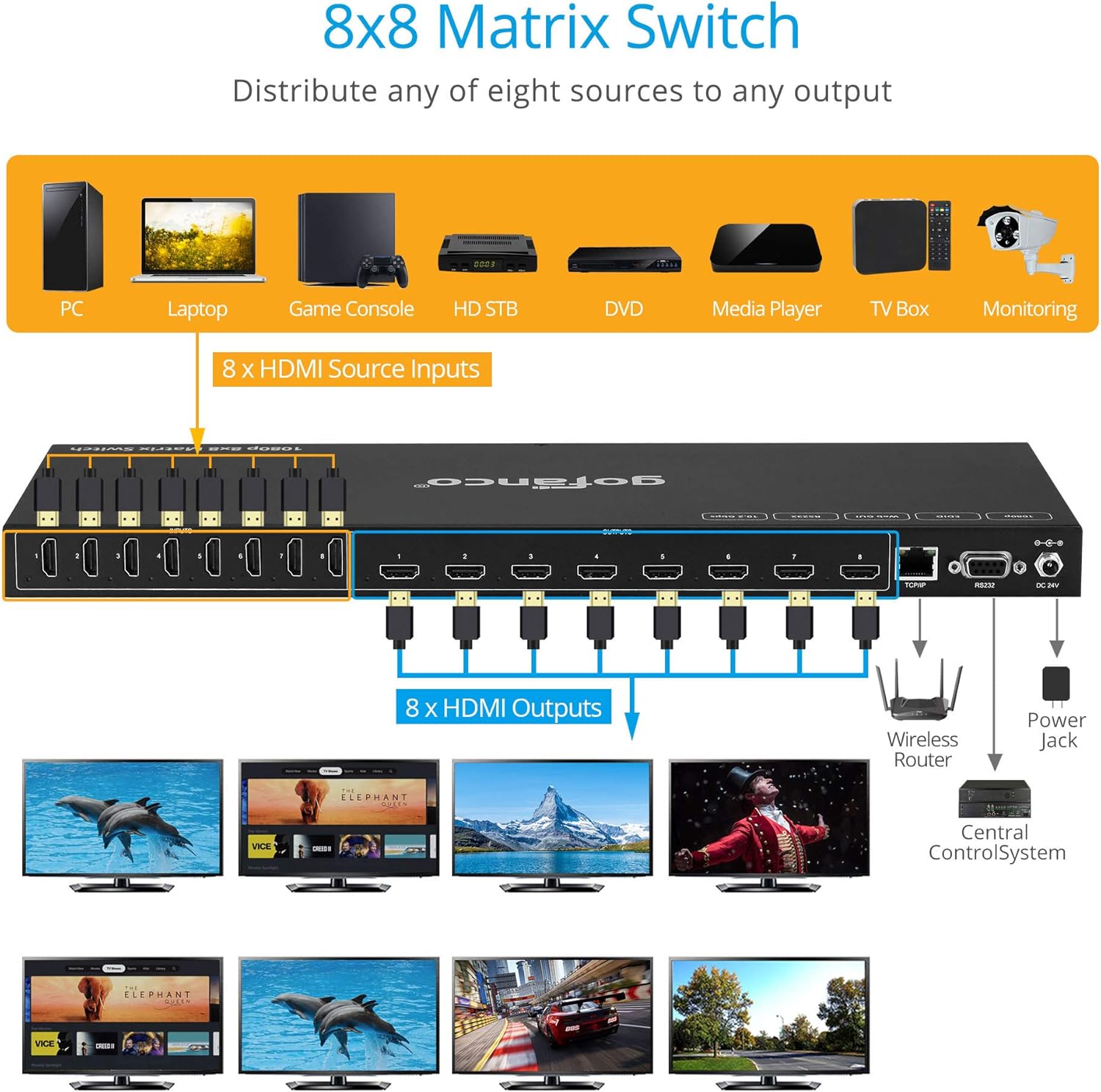

✔ 8x8 HDMI MATRIX – Connect up to eight HDMI source devices and independently distribute any source to any of the eight HDMI displays. GREAT HDMI DISTRIBUTION PRODUCT for you 1080p DVD/Blu-Ray players, cable/satellite boxes, laptop computers, gaming consoles & streaming devices✔ 1080p DISPLAY RESOLUTION & DIGITAL AUDIO – Up to 1080p @60Hz YUV 4:4:4 8bit; supports audio formats: LPCM 2ch, Dolby Digital 2/5.1ch and DTS 2/5.1ch; HDMI 1.3a, HDCP 1.4 compliant✔ ADVANCED HDMI MATRIX SWITCH FEATURES – Smart EDID management to match the connected displays to media devices for high quality video, quick switching with saved configurations via GUI, and firmware upgradable to expand compatibility✔ FOUR SWITCHING METHODS – 1) Front panel buttons, 2) IR remote control, 3) RS-232, and 4) GUI control. *Note: A remote battery (CR2025, 3V) is required but not included for safety reasons✔ SIMPLE INSTALLATION – No driver required; Surface-mountable metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select "Ask a Question"
8x8 HDMI Matrix Switch C559618
Sale price
$30.99
Regular price $106.23
Shipping calculated at checkout.
| Matrix44v2 | PRO-Matrix44-SC | Matrix42-HD20 | Matrix44-HD20 | PRO-Matrix88-aud | Matrix88 | |
|---|---|---|---|---|---|---|
| Input x Output | 4x4 | 4x4 | 4x2 | 4x4 | 8x8 | 8x8 |
| Max Resolution | 4K @30Hz | 4K @60Hz 4:4:4 | 4K @60Hz 4:4:4 | 4K @60Hz 4:4:4 | 4K @60Hz 4:4:4 | 1080p @60Hz |
| HDMI/HDCP | HDMI 1.4 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 1.3 / HDCP 1.4 |
| Extender | No | No | No | No | No | No |
| Mixed Resolution Output | None | 4K & 1080p | 4K & 1080p | None | None | None |
| Switch Methods | Front Panel Buttons / IR Remote / RS-232 Control | Alexa Echo Voice / Front Panel Buttons / IR Remote / RS-232 / GUI IP Control / Control4* | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Alexa Echo Voice / Front Panel Buttons / IR Remote / RS-232 / GUI IP Control / Control4* | Front Panel Buttons / IR Remote / RS-232 Control / Web GUI |
| Bandwidth | 10.2 Gbps | 18 Gbps | 18 Gbps | 18 Gbps | 18 Gbps | 10.2 Gbps |
| HDR | No | Yes | Yes | Yes | Yes | No |
| RS-232 Control | Yes | Yes | Yes | Yes | Yes | Yes |
| EDID | Yes | Yes | Yes | Yes | Yes | Yes |
